使用Ffpgem ，silk-v3-decoder，wavesurfer。

一：用php后台来输出波形图，可查看资源包对应的wavToImg.php（没有第二种准确）

二：使用小程序web-view，通过wavesurfer来实现。因为小程序不支持绘图。

以上两种方法都需要注意：

如果不是真机测试，则不需要silkdecode.php，小程序录音silk文件需要base64解码。php_cmd.php用来执行ffpgem。 silk转wav。wavToImg.php则用来绘图。

真机测试则不需要silk-decoded。

注意：真机测试不需要

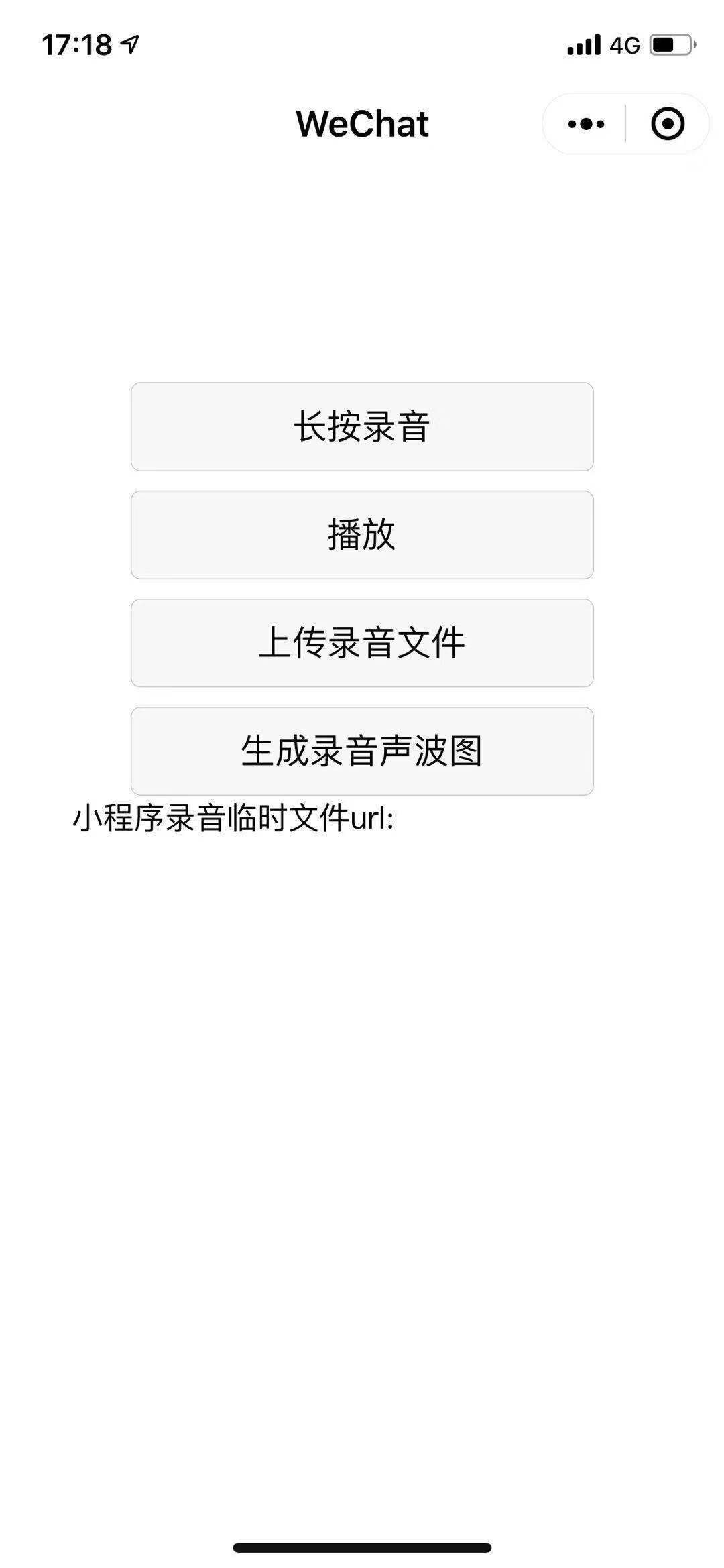

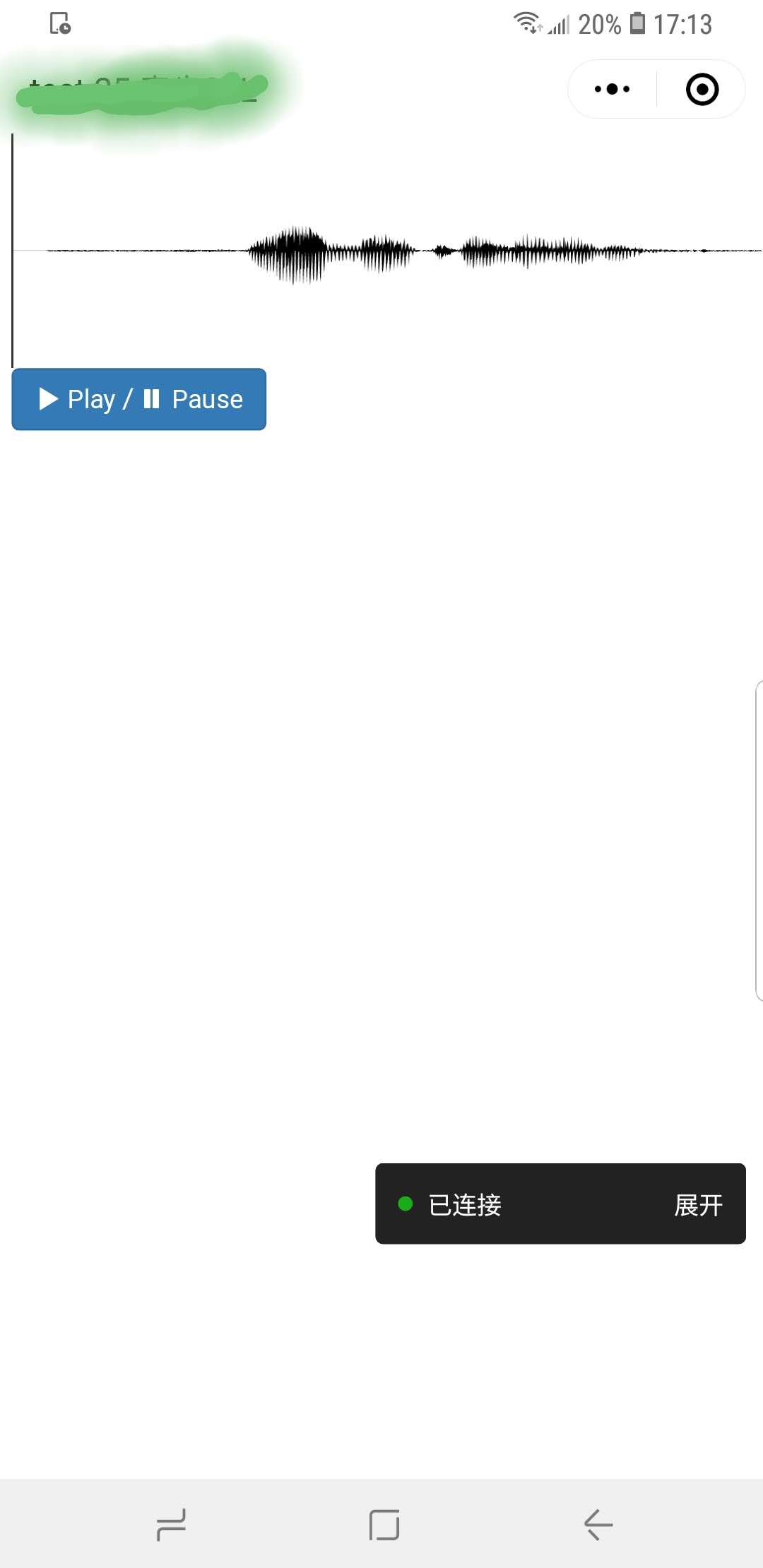

先看效果图：

小程序index.js：

//index.js//获取应用实例var app = getApp()Page({    data: {        motto: 'Hello World',        record_tmpfile: '', // 最近一次录音的临时文件路径;        record_ms: '', // 录音的毫秒数        uploaded_url: '', // 已上传文件的路径;        userInfo: {},        img_l: ''    },   gotoImg:function(e){         wx.redirectTo({          url: "/pages/playImg/playImg"        })        },    // 录音功能:     handleRecordStart: function(e) {        const that = this        const timeStart = Date.now();         wx.startRecord({            success: function(res) {                console.log('record success res: ', res.tempFilePath);                // uploaded_url = res.tempFilePath;                that.setData({                    uploaded_url: res.tempFilePath                })                var tempFilePath = res.tempFilePath                that.setData({                    record_tmpfile: tempFilePath,                    record_ms: Date.now() - timeStart,                });            },            fail: function(res) {                //录音失败                console.log('record fail res: ', res);                wx.stopRecord();                if (res.errMsg.indexOf('auth') >= 0) {                    wx.showModal({                        title: '无法录音',                        content: '您已经拒绝访问麦克风，无法使用录音功能，如需使用，请删除此小程序，并重新搜索打开',                        showCancel: false,                    });                } else {                    wx.showToast({                        title: '未知错误',                    })                }            }        })        setTimeout(function() {            //结束录音              wx.stopRecord()        }, 60000);    },    // 停止录音:     handleRecordEnd: function(e) {        wx.stopRecord()    },    // 播放录音:     handlePlayVoice: function() {        console.log('start play voice');        wx.playVoice({            filePath: this.data.record_tmpfile,        })    },fenxi:function(){  },    handleUploadVoice: function() {        const { record_tmpfile, record_ms } = this.data;        wx.showLoading({ title: '上传中' });        const that = this;        wx.uploadFile({          url: app.api_url + 'silk-v3-decoder/silkToWav.php',            filePath: record_tmpfile,            name: 'file',            formData: {                audio_ms: record_ms,            },            success: function(res) {                wx.hideLoading();                var data = res.data                console.log('upload_res: ', res);                const data2 = JSON.parse(res.data);                console.log('upload res data2: ', data2);                //do something                let toastTitle = '上传成功';                if (data2.c != 0) {                    toastTitle = data2.m;                } else {                    that.setData({ uploaded_url: data2.d });                }                setTimeout(function() {                    wx.showToast({ title: toastTitle });                }, 500);            },            fail: function(res) {                wx.hideLoading();            }        })    }})

全部代码包

https://download.csdn.net/download/coder_daiwang/10883947
