WebSocket接收前端图片自动断开连接异常

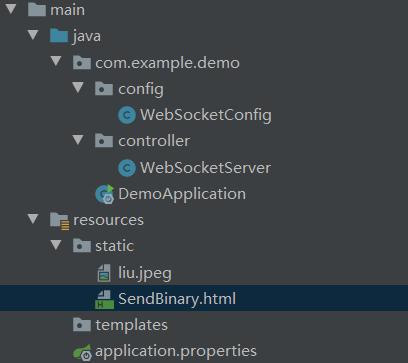

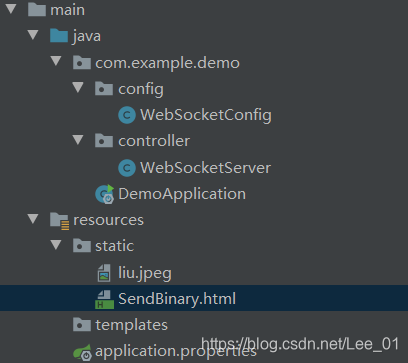

项目结构

小程序

代码

@Slf4j@Component@ServerEndpoint("/echo/{sid}")public class WebSocketServer {    /**     * concurrent包的线程安全Set，用来存放每个客户端对应的WebSocketServer对象     */    private static CopyOnWriteArraySetWebSocketServer webSocketSet = new CopyOnWriteArraySet();    /**     * 与某个客户端的连接会话，需要通过它来给客户端发送数据     */    private Session session;    /**     * 连接会话id     */    private String sid = "";    /**     * 连接建立成功调用的方法     *     * @param session 会话     * @param sid     标识连接的id     */    @OnOpen    public void onOpen(Session session, @PathParam("sid") String sid) {        this.session = session;        this.sid = sid;        // 加入set中        webSocketSet.add(this);        log.info("【websocket消息】有新的连接, 总数:{}", webSocketSet.size());        try {            sendMessage("连接成功");        } catch (IOException e) {            log.error("websocket IO异常");        }    }    /**     * 收到客户端消息后调用的方法     *     * @param message 客户端发送过来的消息（字符串）     */    @OnMessage    public void onMessage(String message) throws IOException {        log.info("【websocket消息】收到客户端{}发来的字符串消息:{}", sid, message);        sendMessage(message);    }    /**     * 收到客户端消息后调用的方法     *     * @param message 客户端发送过来的消息（字节数组）     */    @OnMessage    public void onMessage(byte[] message) throws IOException {        log.info("收到图片了");        String str = Base64.encodeBase64String(message); // 图片base64        log.info(str.substring(0, 100));    }    /**     * 连接关闭调用的方法     */    @OnClose    public void onClose() {        // 从set中删除        webSocketSet.remove(this);        log.info("【websocket消息】连接断开, 总数:{}", webSocketSet.size());    }    /**     * 连接发生错误时调用的方法     *     * @param error 运行时抛出的异常     */    @OnError    public void onError(Throwable error) {        log.error("【websocket消息】发生错误");        error.printStackTrace();    }    /**     * 服务器主动推送字符串消息     *     * @param message 服务器发送到前端的消息     * @throws IOException IO异常     */    private void sendMessage(String message) throws IOException {        session.getBasicRemote().sendText(message);    }    /**     * 服务器主动推送二进制消息     *     * @param message 服务器发送到前端的消息     * @throws IOException IO异常     */    private void sendMessage(byte[] message) throws IOException {        ByteBuffer byteBuffer = ByteBuffer.wrap(message);        session.getBasicRemote().sendBinary(byteBuffer);    }}

前端

!DOCTYPE htmlhtml lang="en"    head        meta charset="UTF-8"        title发送二进制消息/title        script            var websocket = null;            // 判断当前浏览器是否支持WebSocket            if ('WebSocket' in window) {                websocket = new WebSocket("ws://localhost:8080/echo/65");                // websocket默认是传输字符串的，需要改为arraybuffer二进制传输类型                websocket.binaryType = "arraybuffer";            } else {                alert('当前浏览器 Not support websocket')            }            // 连接发生错误的回调方法            websocket.onerror = function () {                setMessageInnerHTML("WebSocket连接发生错误");            };            // 连接成功建立的回调方法            websocket.onopen = function () {                setMessageInnerHTML("WebSocket连接成功");            };            // 接收到消息的回调方法            websocket.onmessage = function (event) {                // 将接收到的二进制数据转为字符串                var unit8Arr = new Uint8Array(event.data);                setMessageInnerHTML(byteToString(unit8Arr));            };            // 连接关闭的回调方法            websocket.onclose = function () {                setMessageInnerHTML("WebSocket连接关闭");            };            // 监听窗口关闭事件，当窗口关闭时，主动去关闭websocket连接，防止连接还没断开就关闭窗口，server端会抛异常。            window.onbeforeunload = function () {                closeWebSocket();            };            function setMessageInnerHTML(innerHTML) {                document.getElementById('message').innerHTML += innerHTML + 'br/';            }            //关闭WebSocket连接            function closeWebSocket() {                websocket.close();            }            /**             * 网络图像文件转Base64             */            function getBase64Image(img) {                var canvas = document.createElement("canvas");                canvas.width = img.width;                canvas.height = img.height;                var ctx = canvas.getContext("2d");                ctx.drawImage(img, 0, 0, img.width, img.height);                var ext = img.src.substring(img.src.lastIndexOf(".") + 1).toLowerCase();                var dataURL = canvas.toDataURL("image/" + ext);                console.log(dataURL);                return dataURL;            }            /**             *Base64字符串转二进制             */            function dataURLtoBlob(dataurl) {                var arr = dataurl.split(','),                    mime = arr[0].match(/:(.*?);/)[1],                    bstr = atob(arr[1]),                    n = bstr.length,                    u8arr = new Uint8Array(n);                while (n--) {                    u8arr[n] = bstr.charCodeAt(n);                }                return new Blob([u8arr], {                    type: mime                });            }            // 发送图片            function sendPic() {                var image = new Image();                image.src = "liu.jpeg";                image.onload = function () {                    //这样就获取到了文件的Base64字符串                    var base64 = getBase64Image(image);                    //Base64字符串转二进制                    var file = dataURLtoBlob(base64);                    websocket.send(file);                }            }            //将字符串转为 Array byte数组            function stringToByte(str) {                var bytes = [];                var len, c;                len = str.length;                for (var i = 0; i  len; i++) {                    c = str.charCodeAt(i);                    if (c = 0x010000 && c = 0x10FFFF) {                        bytes.push(((c  18) & 0x07) | 0xF0);                        bytes.push(((c  12) & 0x3F) | 0x80);                        bytes.push((
