物流助手
cancelOrder
取消运单
本接口应在后端服务器调用，详细说明参见后端API。
请求地址
POST https://api.weixin.qq.com/cgi-bin/express/business/order/cancel?access_token=ACCESS_TOKEN

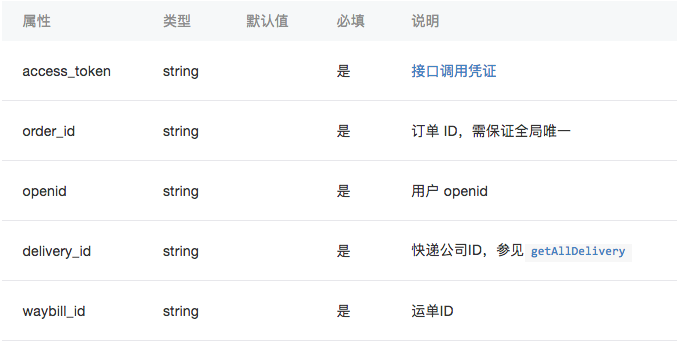

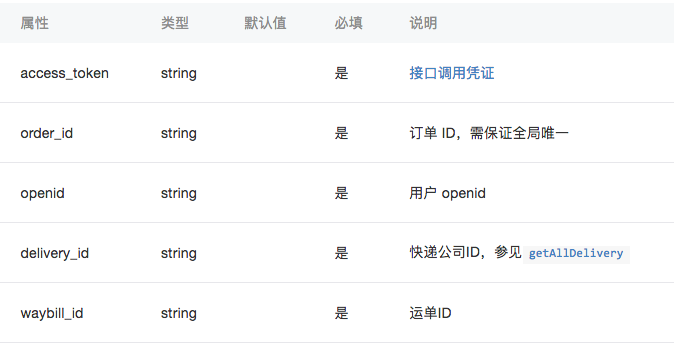

请求参数

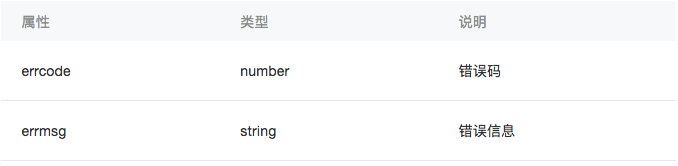

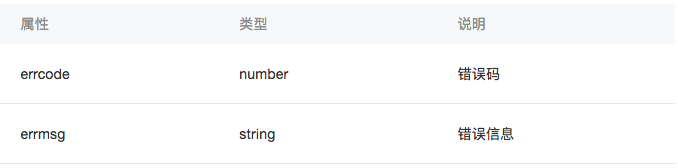

返回值
Object

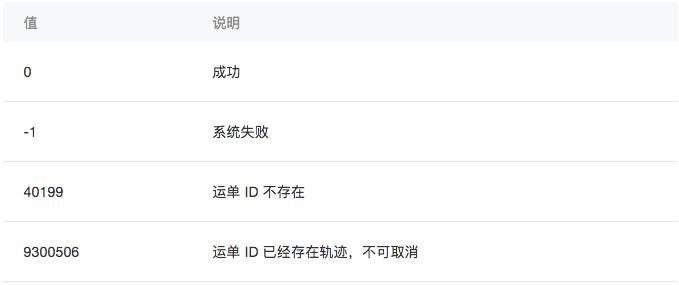

errcode 的合法值
请求数据示例
{ "order_id": "01234567890123456789", "openid": "oABC123456", "delivery_id": "SF", "waybill_id": "123456789"}返回数据示例
{ "errcode": 0, "errmsg": "ok"}getAllDelivery
获取支持的快递公司列表
本接口应在后端服务器调用，详细说明参见后端API。
请求地址
GET https://api.weixin.qq.com/cgi-bin/express/business/delivery/getall?access_token=ACCESS_TOKEN

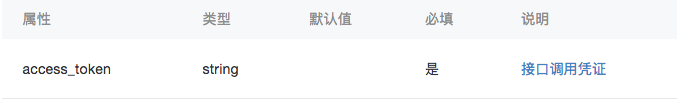

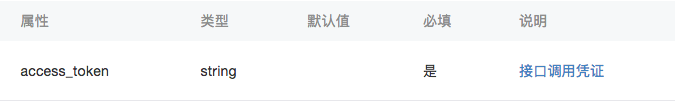

请求参数

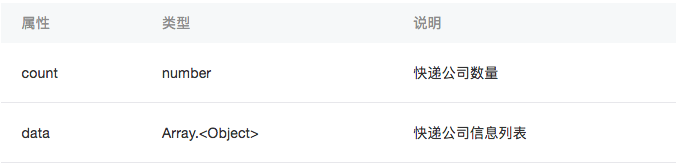

返回值
Object

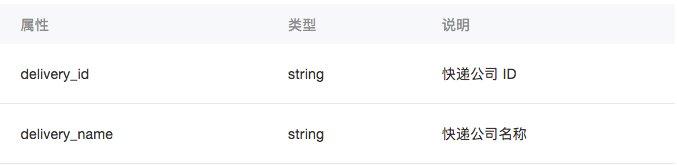

data 的结构
返回数据示例
{ "count": 8, "data": [ { "delivery_id": "BEST", "delivery_name": "百世快递" }, { "delivery_id": "EMS", "delivery_name": "中国邮政速递物流" }, { "delivery_id": "OTP", "delivery_name": "承诺达特快" }, { "delivery_id": "PJ", "delivery_name": "品骏物流" }, { "delivery_id": "SF", "delivery_name": "顺丰速运" }, { "delivery_id": "YTO", "delivery_name": "圆通速递" }, { "delivery_id": "YUNDA", "delivery_name": "韵达快递" }, { "delivery_id": "ZTO", "delivery_name": "中通快递" } ]}getOrder
获取运单数据
本接口应在后端服务器调用，详细说明参见后端API。
请求地址
POST https://api.weixin.qq.com/cgi-bin/express/business/order/get?access_token=ACCESS_TOKEN
请求参数

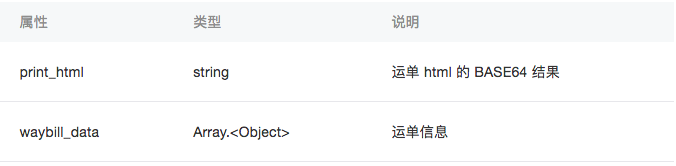

返回值
Object

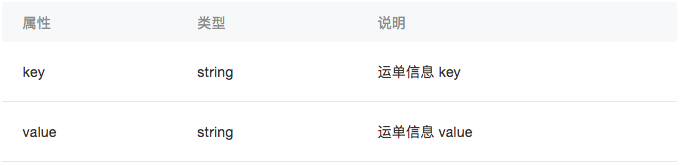

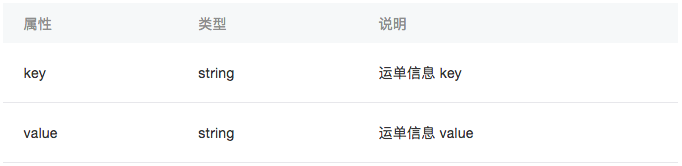

waybill_data 的结构
请求数据示例
{ "order_id": "01234567890123456789", "openid": "oABC123456", "delivery_id": "SF", "waybill_id": "123456789"}返回数据示例
{ "print_html": "jh7DjipP4ul4CQYUh69cniskrQZuOPwa1inAbXIqKbU0t71c0s65Au54cdWBZW0QJY4LYeofdM", "waybill_data": [ { "key": "SF_bagAddr", "value": "广州" }, { "key": "SF_mark", "value": "101- 07-03 509" } ]}getPath
查询运单轨迹
本接口应在后端服务器调用，详细说明参见后端API。
请求地址
POST https://api.weixin.qq.com/cgi-bin/express/business/path/get?access_token=ACCESS_TOKEN
请求参数

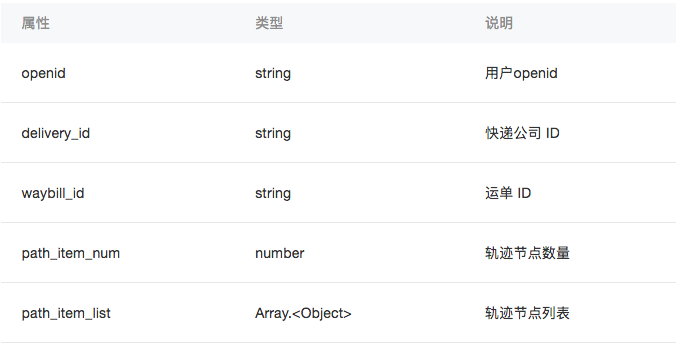

返回值
Object

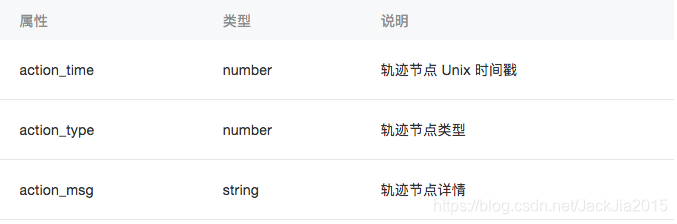

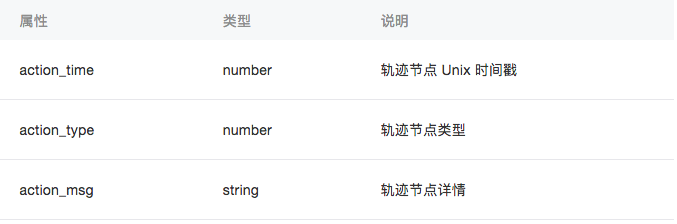

path_item_list 的结构

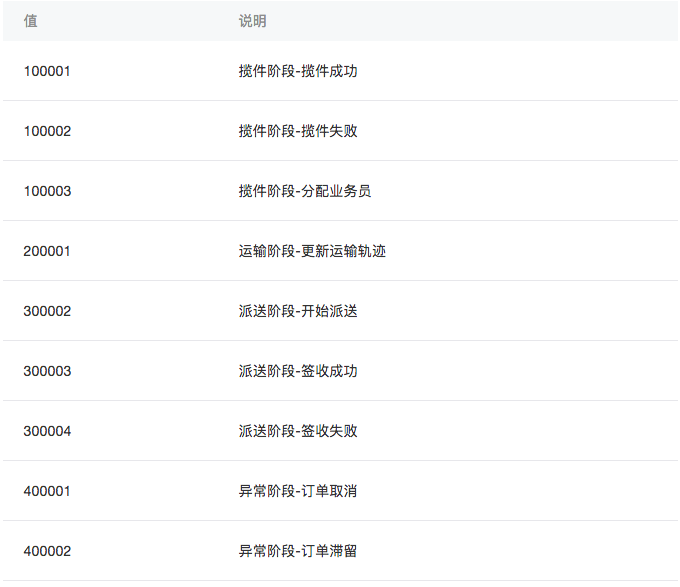

action_type 的合法值
请求数据示例
{ "order_id": "01234567890123456789", "openid": "oABC123456", "delivery_id": "SF", "waybill_id": "123456789"}返回数据示例
{ "openid": "OPENID", "delivery_id": "SF", "waybill_id": "12345678901234567890", "path_item_num": 3, "path_item_list": [ { "action_time": 1533052800, "action_type": 100001, "action_msg": "快递员已成功取件" }, { "action_time": 1533062800, "action_type": 200001, "action_msg": "快件已到达xxx集散中心，准备发往xxx" }, { "action_time": 1533072800, "action_type": 300001, "action_msg": "快递员已出发，联系电话xxxxxx" } ]}getPrinter
获取打印员。若需要使用微信打单 PC 软件，才需要调用。
本接口应在后端服务器调用，详细说明参见后端API。
请求地址
GET https://api.weixin.qq.com/cgi-bin/express/business/printer/getall?access_token=ACCESS_TOKEN
请求参数

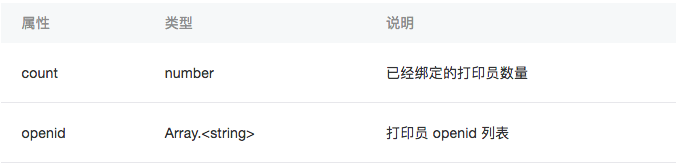

返回值
Object
返回数据示例
{ "count": 2, "openid": ["oABC", "oXYZ"]}getQuota
获取电子面单余额。仅在使用加盟类快递公司时，才可以调用。
本接口应在后端服务器调用，详细说明参见后端API。
请求地址
POST https://api.weixin.qq.com/cgi-bin/express/business/quota/get?access_token=ACCESS_TOKEN

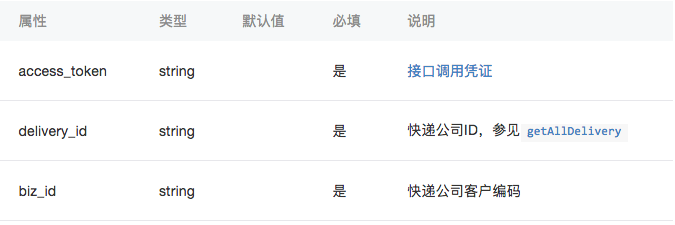

请求参数

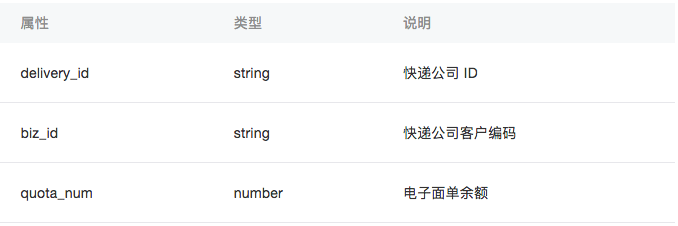

返回值
Object
请求数据示例
{ "delivery_id": "YTO", "biz_id": "xyz"}返回数据示例
{ "delivery_id": "YTO", "biz_id": "1234", "quota_num": 210}onPathUpdate
本文档描述后端服务器接收的消息或事件，详细说明参见消息推送。
运单轨迹更新事件。当运单轨迹有更新时，会产生如下数据包。收到事件之后，回复success或者空串即可。

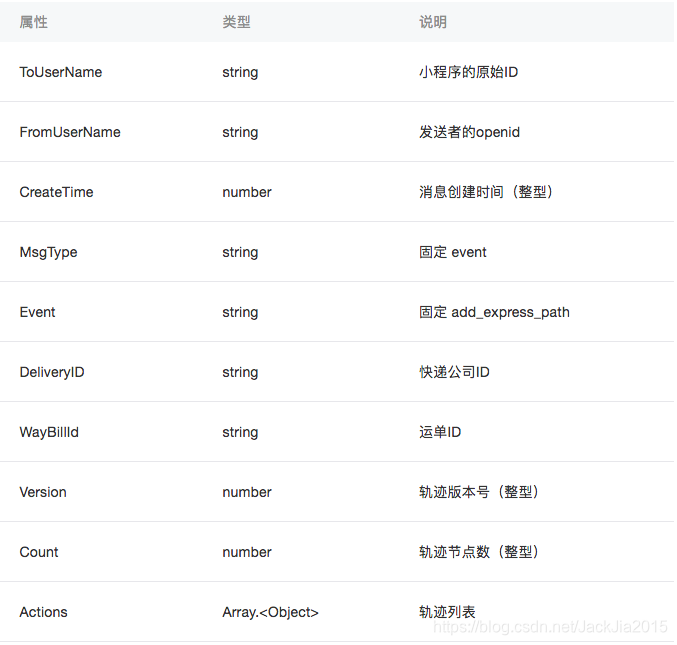

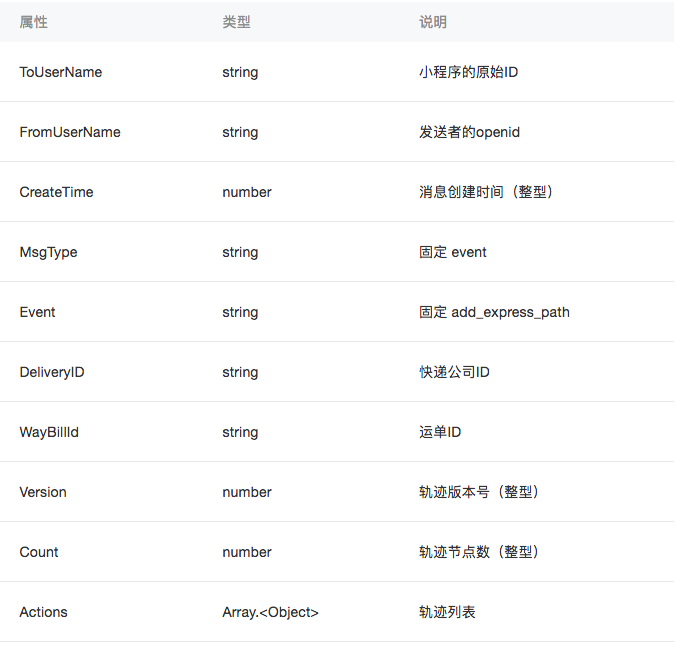

消息参数
Object

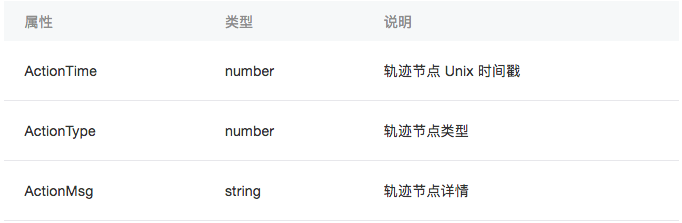

Actions 的结构

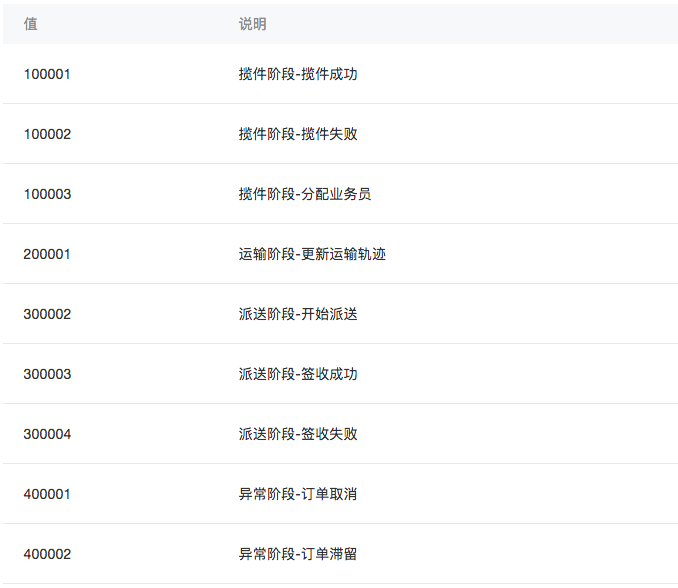

ActionType 的合法值
消息数据包示例
XML 格式
xml ToUserName![CDATA[toUser]]/ToUserName FromUserName![CDATA[fromUser]]/FromUserName CreateTime1546924844/CreateTime MsgType![CDATA[event]]/MsgType Event![CDATA[add_express_path]]/Event DeliveryID![CDATA[SF]]/DeliveryID WayBillId![CDATA[123456789]]/WayBillId Version3/Version Count3/Count Actions ActionTime1546924840/ActionTime ActionType100001/ActionType ActionMsg![CDATA[小哥A揽件成功]]/ActionMsg /Actions Actions ActionTime1546924841/ActionTime ActionType200001/ActionType ActionMsg![CDATA[到达广州集包地]]/ActionMsg /Actions Actions ActionTime1546924842/ActionTime ActionType200001/ActionType ActionMsg![CDATA[运往目的地]]/ActionMsg /Actions/xmlJSON 格式
{ "ToUserName": "toUser", "FromUserName": "fromUser", "CreateTime": 1546924844, "MsgType": "event", "Event": "add_express_path", "DeliveryID": "SF", "WayBillId": "123456789", "Version": 2, "Count": 3, "Actions": [ { "ActionTime": 1546924840, "ActionType": 100001, "ActionMsg": "小哥A揽件成功" }, { "ActionTime": 1546924841, "ActionType": 200001, "ActionMsg": "到达广州集包地" }, { "ActionTime": 1546924842, "ActionType": 200001, "ActionMsg": "运往目的地" } ]}addOrder
生成运单
本接口应在后端服务器调用，详细说明参见后端API。
请求地址
POST https://api.weixin.qq.com/cgi-bin/express/business/order/add?access_token=ACCESS_TOKEN

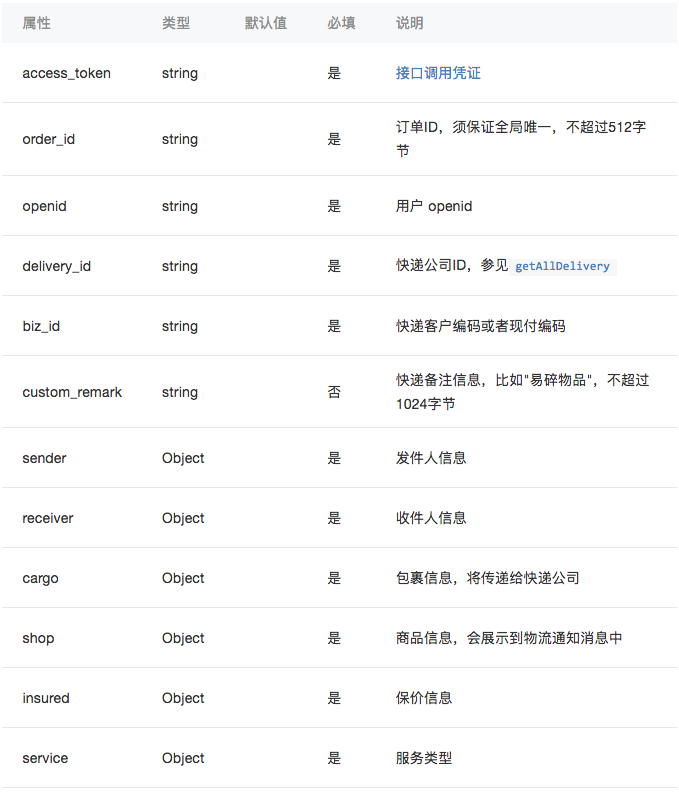

请求参数
sender 的结构

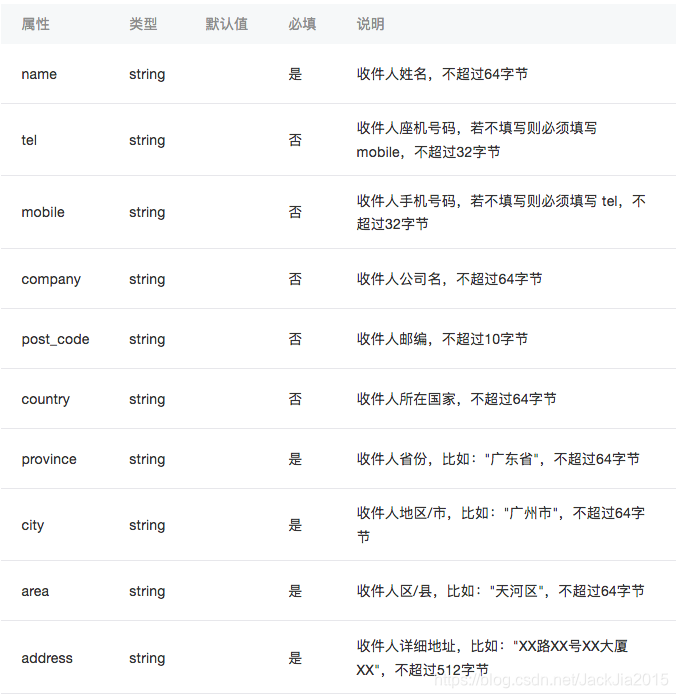

receiver 的结构

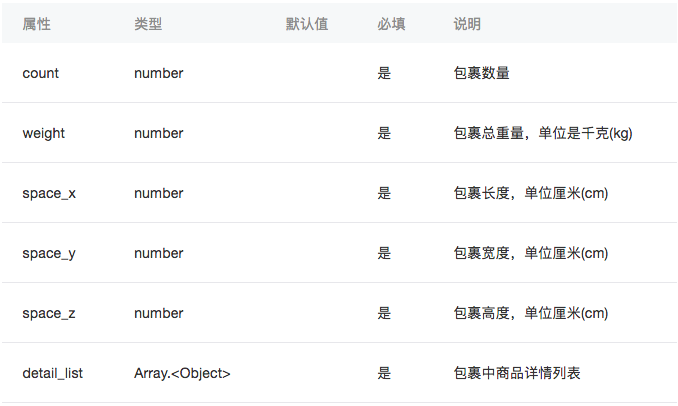

cargo 的结构

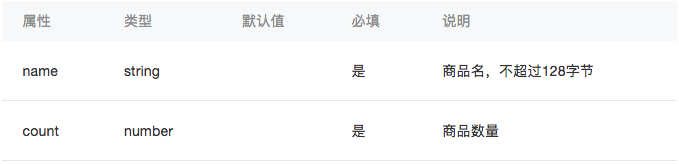

cargo.detail_list 的结构

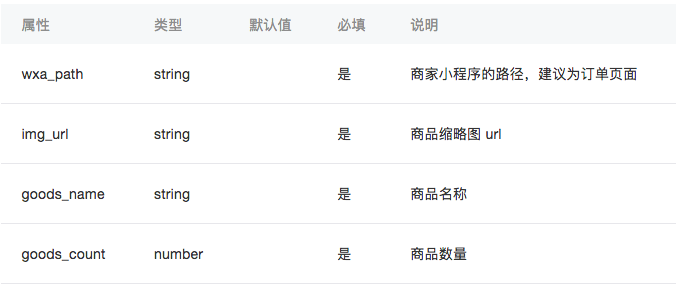

shop 的结构

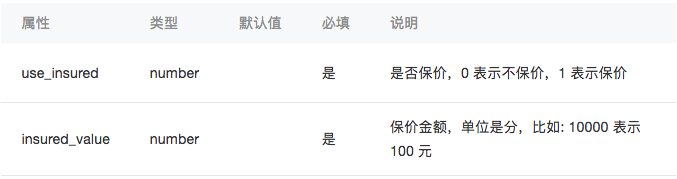

insured 的结构

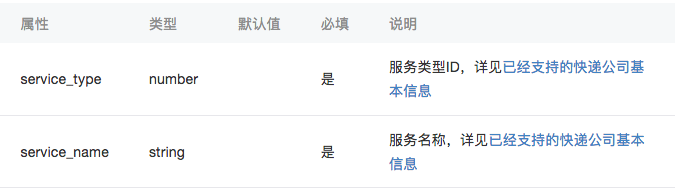

service 的结构

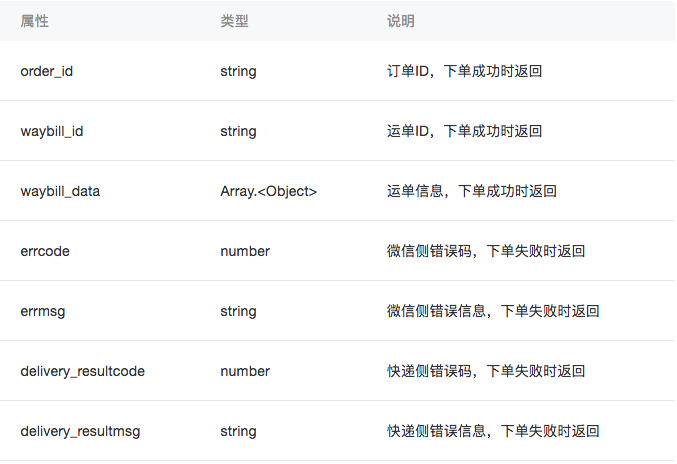

返回值
Object
waybill_data 的结构

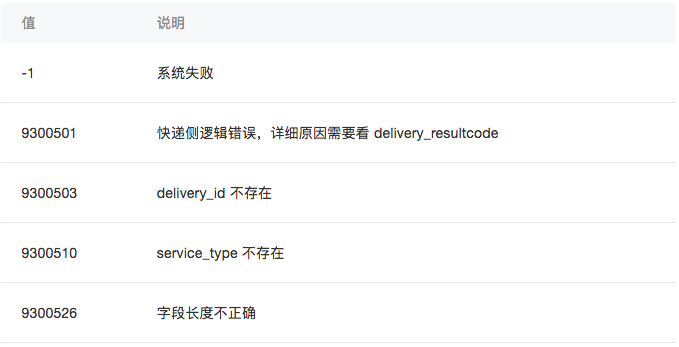

errcode 的合法值
请求数据示例
{ "order_id": "01234567890123456789", "openid": "oABC123456", "delivery_id": "SF", "biz_id": "xyz", "custom_remark": "易碎物品", "sender": { "name": "张三", "tel": "18666666666", "mobile": "020-88888888", "company": "公司名", "post_code": "123456", "country": "中国", "province": "广东省", "city": "广州市", "area": "海珠区", "address": "XX路XX号XX大厦XX栋XX" }, "receiver": { "name": "王小蒙", "tel": "18610000000", "mobile": "020-77777777", "company": "公司名", "post_code": "654321", "country": "中国", "province": "广东省", "city": "广州市", "area": "天河区", "address": "XX路XX号XX大厦XX栋XX" }, "shop": { "wxa_path": "/index/index?from=waybill&id=01234567890123456789", "img_url": "https://mmbiz.qpic.cn/mmbiz_png/OiaFLUqewuIDNQnTiaCInIG8ibdosYHhQHPbXJUrqYSNIcBL60vo4LIjlcoNG1QPkeH5GWWEB41Ny895CokeAah8A/640", "goods_name": "一千零一夜钻石包&爱马仕铂金包", "goods_count": 2 }, "cargo": { "count": 2, "weight": 5.5, "space_x": 30.5, "space_y": 20, "space_z": 20, "detail_list": [ { "name": "一千零一夜钻石包", "count": 1 }, { "name": "爱马仕铂金包", "count": 1 } ] }, "insured": { "use_insured": 1, "insured_value": 10000 }, "service": { "service_type": 0, "service_name": "标准快递" }}返回数据示例
下单成功
{ "order_id": "01234567890123456789", "waybill_id": "123456789", "waybill_data": [ { "key": "SF_bagAddr", "value": "广州" }, { "key": "SF_mark", "value": "101- 07-03 509" } ]}下单失败
{ "errcode": 9300501, "errmsg": "delivery logic fail", "delivery_resultcode": 10002, "delivery_resultmsg": "客户密码不正确"}updatePrinter
更新打印员。若需要使用微信打单 PC 软件，才需要调用。
本接口应在后端服务器调用，详细说明参见后端API。
请求地址
POST https://api.weixin.qq.com/cgi-bin/express/business/printer/update?access_token=ACCESS_TOKEN

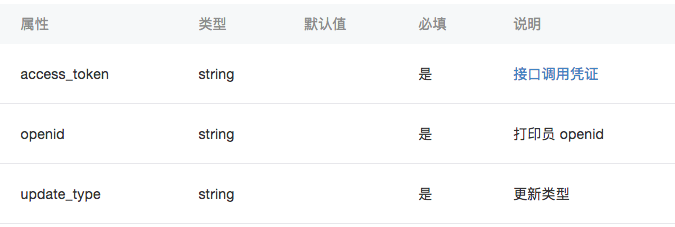

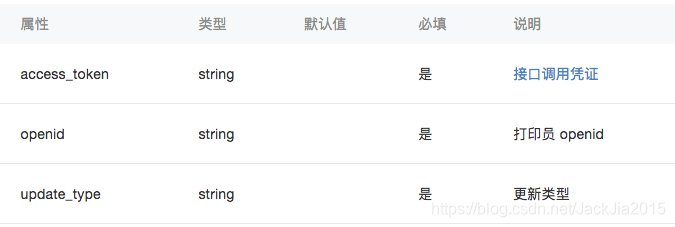

请求参数
update_type 的合法值
返回值
Object

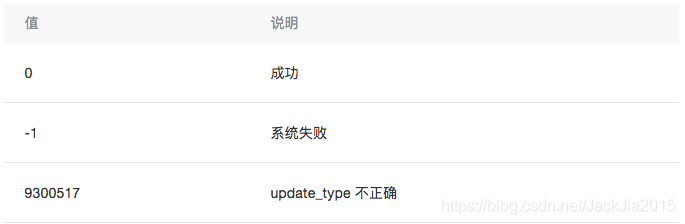

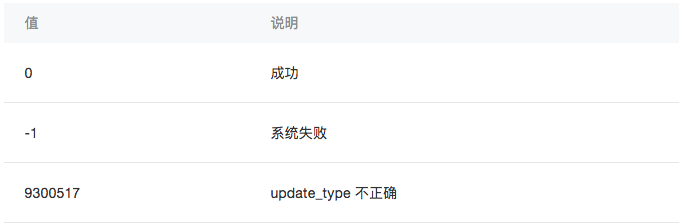

errcode 的合法值
请求数据示例
{ "openid": "oJ4v0wRAfiXcnIbM3SgGEUkTw3Qw", "update_type": "bind"}返回数据示例
{ "errcode": 0, "errmsg": "ok"}
