媒体处理这部分的视频转码涉及到 阿里云服务的对象存储OSS服务，消息服务MNS，及媒体处理MTS服务
可以利用阿里云服务的MTS服务即媒体处理 https://mts.console.aliyun.com/?spm=5176.8466032.aliyun_sidebar.aliyun_sidebar_mts.25181450XajZUr#/home/index

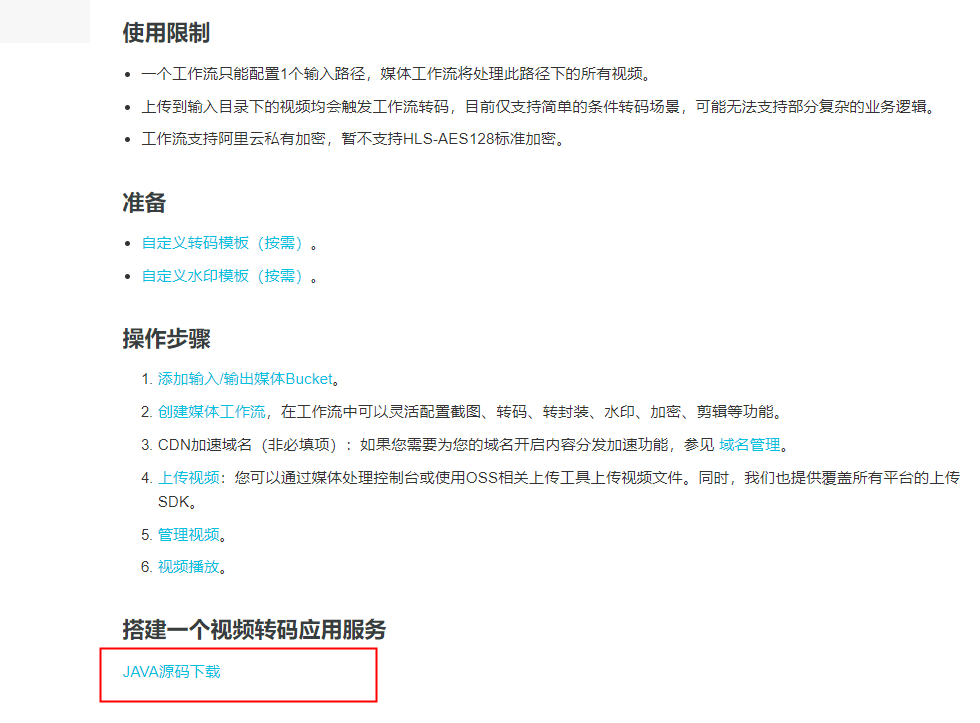

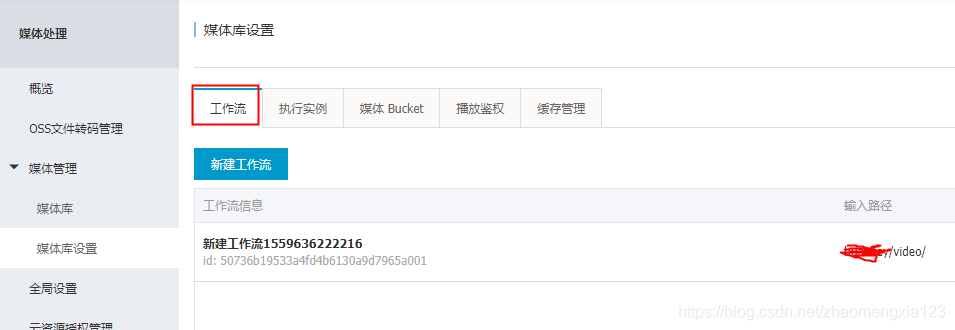

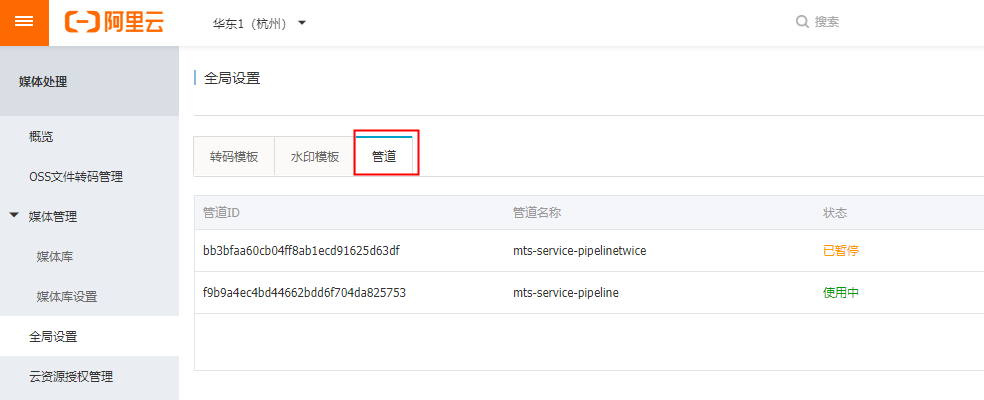

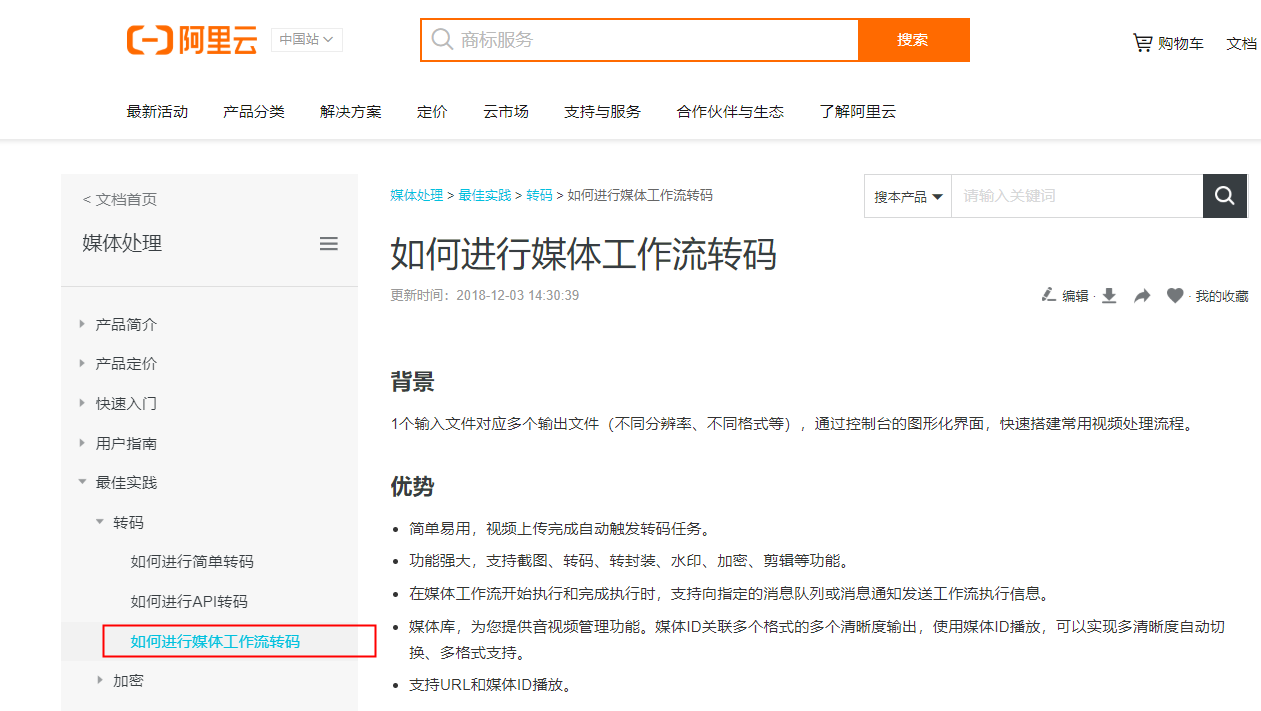

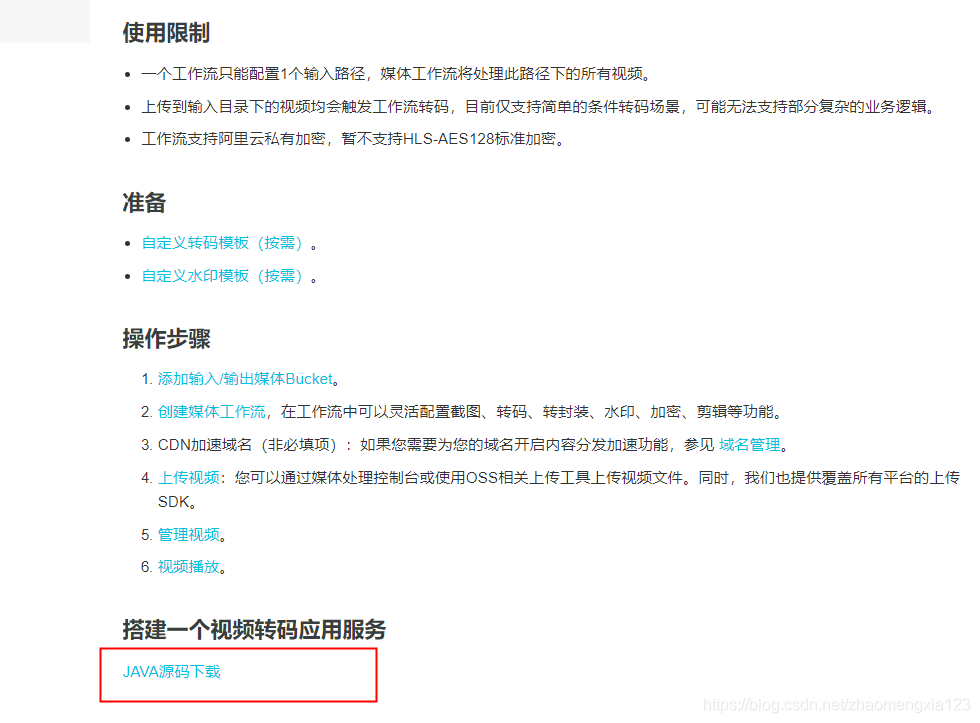

我们需要 通过学习 https://help.aliyun.com/document_detail/29208.html?spm=5176.2020520107.104.1.449f4ecbltS5na 转码教程，分别去完成工作流和管道的设置

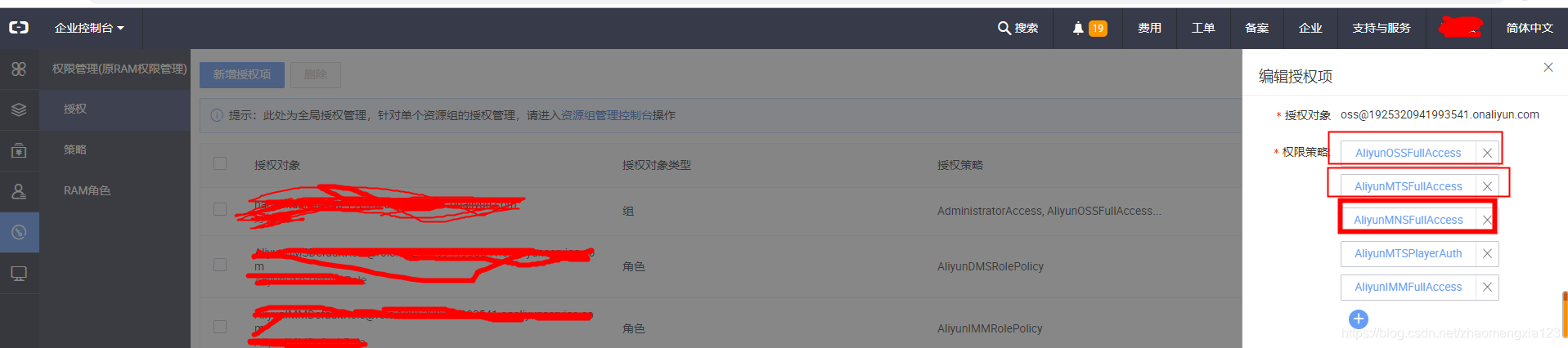

登录我们的阿里云账户 进入之后如果要分配权限 则

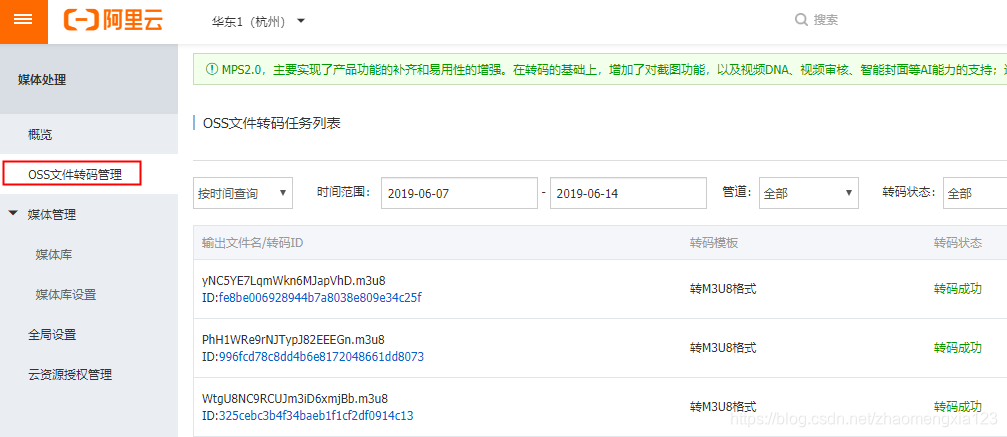

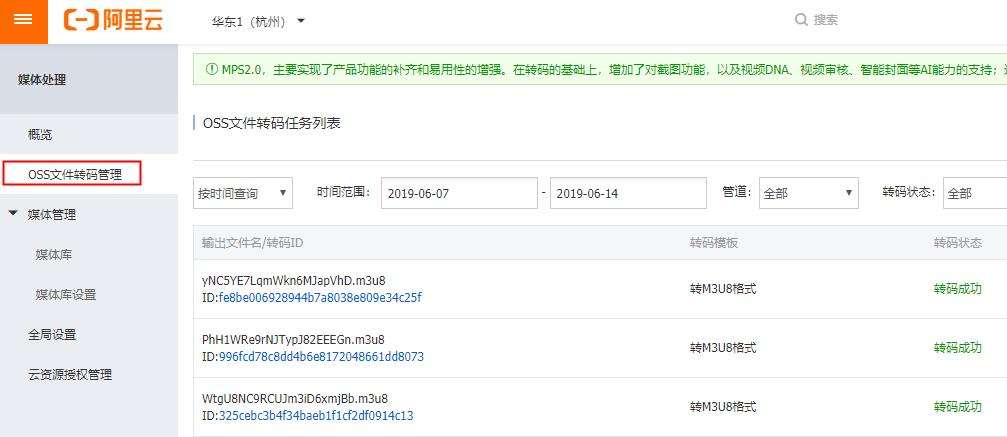

根据转码文档 把该配的配好，然后进入如下
package com.huankeyun.community.service;import com.alibaba.fastjson.JSONObject;import com.aliyun.mns.client.CloudAccount;import com.aliyun.mns.client.CloudQueue;import com.aliyun.mns.client.MNSClient;import com.aliyun.mns.common.ServiceException;import com.aliyun.mns.model.Message;import com.aliyuncs.DefaultAcsClient;import com.aliyuncs.exceptions.ClientException;import com.aliyuncs.exceptions.ServerException;import com.aliyuncs.mts.model.v20140618.QueryMediaListRequest;import com.aliyuncs.mts.model.v20140618.QueryMediaListResponse;import com.aliyuncs.profile.DefaultProfile;import com.huankeyun.core.api.file.*;import lombok.extern.slf4j.Slf4j;import org.apache.commons.lang3.exception.ExceptionUtils;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;import javax.annotation.Resource;import java.util.ArrayList;import java.util.List;import static org.bouncycastle.crypto.tls.ConnectionEnd.client;/** * @Author zhaomengxia * @create 2019/6/3 13:49 */@Service@Slf4jpublic class AliyunVideoService { @Resource private FileService fileService; //步骤1.请填写你所需访问的Region：cn-hangzhou、cn-shenzhen、cn-shanghai、cn-beijing private final String REGION = "cn-hangzhou"; //步骤2.从阿里云消息服务的控制台对应区域Copy MNSEndPoint //MNS控制台链接：https://mns.console.aliyun.com private final String mnsEndPoint = "https://1925320941993541.mns.cn-hangzhou.aliyuncs.com/"; private final String mtsEndpoint = "mts." + REGION + ".aliyuncs.com"; //步骤3.填写您的AK，确保此AK具有访问MTS的权限（即已经开通MTS） private String accessKeyId = "LTAIaiadWrm2lhGR"; private String accessKeySecret = "CUr5jkEvKIA96c2bpSI7JK4fVj3etE"; //步骤4.填写您的媒体工作流输入Bbucket,务必与创建媒体工作流时设置的保持一致 //步骤5.填写媒体工作流处理视频完成时消息发送队列，务必与创建媒体工作流时设置的保持的一致 private String mediaWorkflowQueueName = "queue"; private CloudAccount account; private CloudQueue queue; private DefaultAcsClient aliyunClient;//调用MTS API的Client @Autowired public AliyunVideoService() { this.account = new CloudAccount(accessKeyId, accessKeySecret, mnsEndPoint); MNSClient mnsClient = account.getMNSClient(); this.queue = mnsClient.getQueueRef(mediaWorkflowQueueName); try { DefaultProfile.addEndpoint(REGION, REGION, "Mts", mtsEndpoint); } catch (ClientException e) { System.out.print(ExceptionUtils.getStackTrace(e)); System.exit(1); } this.aliyunClient = new DefaultAcsClient(DefaultProfile.getProfile(REGION, accessKeyId, accessKeySecret)); } public List<String> videoUrls() { //步骤6.上传视频到媒体工作流处理Bucket，媒体工作流将自动启动处理此视频 //进入MTS控制台：https://mts.console.aliyun.com/ //进入媒体库设置->工作流，务必确保媒体工作流处于启动状态，否则媒体工作流不会处理此视频 List<String> urls = new ArrayList<>(); //步骤7.等待媒体工作流消息回调汇报转码完成， while (true) { List<Message> messageList = queue.batchPopMessage(16, 30); if (null == messageList || messageList.isEmpty()) { try { Thread.sleep(20); } catch (InterruptedException e) { e.printStackTrace(); } continue; } else { for (Message message : messageList) { urls.addAll(handlingMessage(message)); } return urls; } } } public List<String> handlingMessage(Message message) { String messageBody = message.getMessageBody(); ActivityDTO activityDTO = JSONObject.parseObject(messageBody, ActivityDTO.class); List<String> urls = new ArrayList<>(); if (activityDTO.getType().equals(ActivityType.Start.name())) { //若工作流启动消息不希望处理，则直接删除 queue.deleteMessage(message.getReceiptHandle()); } else if (activityDTO.getType().equals(ActivityType.Report.name())) { //System.out.print(JSONObject.toJSONString(activityDTO)); //获取媒体工作流执行信息 MediaWorkflowExecutionDTO mediaWorkflowExecutionDTO = activityDTO.getMediaWorkflowExecutionDTO(); //从媒体工作流中取活动列表 List<ActivityDTO> activityDTOS = mediaWorkflowExecutionDTO.getActivities(); //遍历活动列表，判断转码是否成功 if (null != activityDTOS) { for (ActivityDTO activity : activityDTOS) { if (activity.getType().equals(ActivityType.Transcode.name())) { if (activity.getState().equals(ActivityState.Success.name())) { System.out.println("transcode activity:" + activity.getName() + " is success!"); } else { System.out.println("---------dsjkdlhnsa"); continue; } } } } //获取转码输出地址（OSS地址) QueryMediaListRequest request = new QueryMediaListRequest(); request.setMediaIds(mediaWorkflowExecutionDTO.getMediaId()); request.setIncludePlayList(true); try { QueryMediaListResponse response = aliyunClient.getAcsResponse(request); List<QueryMediaListResponse.Media> list = response.getMediaList(); QueryMediaListResponse.Media media = list.get(0); if (media.getPublishState().equals(MediaState.Published.name())) { List<QueryMediaListResponse.Media.Play> playList = media.getPlayList(); if (null != playList) { for (QueryMediaListResponse.Media.Play play : playList) { //遍历转码输出地址 System.out.println(play.getFile1().getURL()); urls.add(play.getFile1().getURL()); } } } } catch (ServerException e) { System.out.print(ExceptionUtils.getStackTrace(e)); System.exit(1); } catch (ClientException e) { System.out.print(ExceptionUtils.getStackTrace(e)); System.exit(1); } //如果是report消息，需要从队列中删除，否则会一直在队列中 queue.deleteMessage(message.getReceiptHandle()); } return urls; } public FileDTO uploadVideoFileToMediaWOrkflowInputBucket(String filePath) { return fileService.uploadLocalFile(filePath); }}其中的fileService里的uploadLocalFile(String filePath)方法为
public UploadResponse uploadFile(String category, MultipartFile file) throws IOException { String filename = file.getOriginalFilename(); if (category.equals("video")) { String fileType = filename.substring(filename.lastIndexOf("."), filename.length()); VideoType videoType = VideoType.getFormat(fileType); if (null == videoType) { throw new UnifiedException("不支持此视频格式!"); } } String key = KeyGenerateStrategy.MonthBased.key(category, filename); String contentType = file.getContentType(); ObjectMetadata metadata = new ObjectMetadata(); metadata.setContentType(contentType); metadata.addUserMetadata(FILE_NAME, filename); oss.putObject(bucket, key, file.getInputStream(), metadata); AliyunOssUrl ossUrl = new AliyunOssUrl(bucket, key); if (category.equals("video")) { uploadLocalFile(ossUrl.httpsProtocol()); aliyunVideoService.videoUrls(); List<String> strings = aliyunVideoService.videoUrls(); if (strings.size() > 0) { int t = strings.size(); String s = strings.get(t - 1); return new UploadResponse(filename, s); } else{ return uploadFile("video",file); } } return new UploadResponse(filename, ossUrl.httpsProtocol()); } /** * //步骤6.上传视频到媒体工作流处理Bucket，媒体工作流将自动启动处理此视频 //进入MTS控制台：https://mts.console.aliyun.com/ //进入媒体库设置->工作流，务必确保媒体工作流处于启动状态，否则媒体工作流不会处理此视频 * @param filePath * @return */ public FileDTO uploadLocalFile(String filePath) { OSSClient client = new OSSClient(endpoint, accessKeyId, secretAccessKey); String filename = this.getFilename(filePath); return new FileDTO(client.getBucketLocation(bucket), bucket, filename); }
